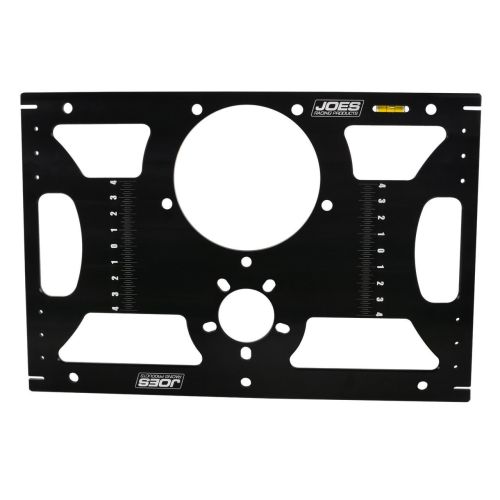

Setup Plate 5-Lug Billet

The Setup Plate 5-Lug Billet from JOES Racing Products is a precision fixture designed for professional engine builders, race mechanics, and serious automotive enthusiasts working with five-lug bolt patterns. Whether you're setting up a fresh short-block, dial-in crankshaft runout, or prepare components for final assembly, this setup plate serves as an indispensable reference tool in any high-performance machine shop or home garage. It's built for those who demand repeatability and accuracy in critical assembly procedures where component trueness directly impacts engine longevity and performance.

Manufactured from billet aluminum, the Setup Plate 5-Lug Billet provides exceptional rigidity and dimensional stability across its 22-inch length and compact 0.5-inch profile, allowing it to function as a true datum for clamping, measuring, and test-fitting engine components. The five-lug configuration accommodates standard automotive hub patterns, enabling users to simulate real-world mounting conditions during pre-assembly testing. At 16 pounds, the plate offers sufficient mass to resist deflection under typical clamping loads while remaining portable enough for convenient workbench use, and its precision-machined surfaces accept dial indicators, calipers, and straightedges for runout verification and alignment checks.

This setup plate is essential for builders working on small-block and big-block platforms that employ conventional five-lug hubs, particularly when constructing competition engines where crankshaft centerline accuracy is non-negotiable. Installation requires only mounting to a surface plate or engine stand using the five-lug pattern, and the design integrates seamlessly with JOES Racing Products' ecosystem of precision tooling. Whether you're running circles to verify main bore alignment, checking rotor and balancer concentricity, or dry-fitting assemblies before final torquing, the Setup Plate 5-Lug Billet becomes an irreplaceable reference for consistency across multiple builds.
