Set Up Plate for 5x5 Pattern

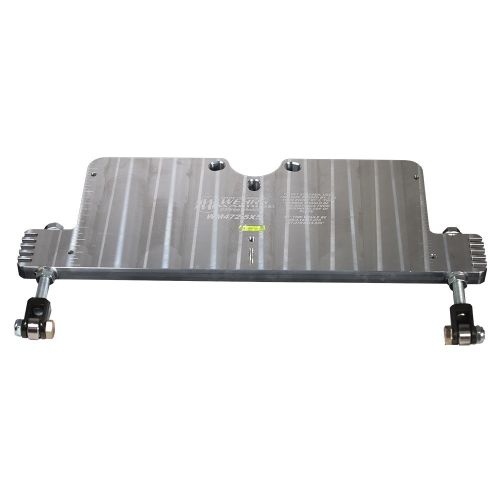

The WEHRS MACHINE Set Up Plate for 5x5 Pattern is designed to provide a stable and precise foundation for suspension tuning and hub alignment on vehicles that utilize the standard 5x5 bolt circle. This tool is essential for professional maintenance environments where consistent geometry across all four corners of a vehicle is critical for predictable handling and long-term mechanical reliability.

Engineered to simulate the wheel mounting surface, this setup plate allows technicians to make adjustments without the bulk or interference of a mounted tire. Its construction is robust, ensuring it can withstand the rigors of high-volume workshops while maintaining the rigidity required for tight tolerances during alignment procedures. The plate's weight of 18 lbs ensures stability during measurements, making it a reliable choice for those managing specialized transport units or tactical vehicle fleets.

With the WM472-5X5 setup plate, users can eliminate variables introduced by rim runout or tire pressure fluctuations, providing a true baseline for camber, caster, and toe settings. This level of accuracy is paramount when preparing vehicles for high-speed transit or rugged terrain where suspension failure is not an option. The setup plate is an invaluable tool for technicians seeking to enhance their vehicle maintenance capabilities.
